Lighting Up a Billion Colors with a Million Lines of Code

The final installment in a series about building a mechanical video wall with advanced LED backlighting, covering a custom HDR-aware software pipeline built in C# with HLSL shaders, vector extensions, and zero-allocation architecture.

This is the concluding part of a series about creating a mechanical video wall with advanced backlighting. Here we describe the development of new software for controlling LED strips, which replaced a temporary solution created several years ago.

Key Features of the New Software

Main improvements:

  • Captures images directly in HDR format without converting to SDR
  • Uses floating-point numbers (float 32-bit) instead of 8-bit integers for each color channel
  • Allows creating and editing effect chains in real time
  • Analyzes the original HDR image directly on the GPU with minimal overhead

Architecture

The software is built as a video mixer using:

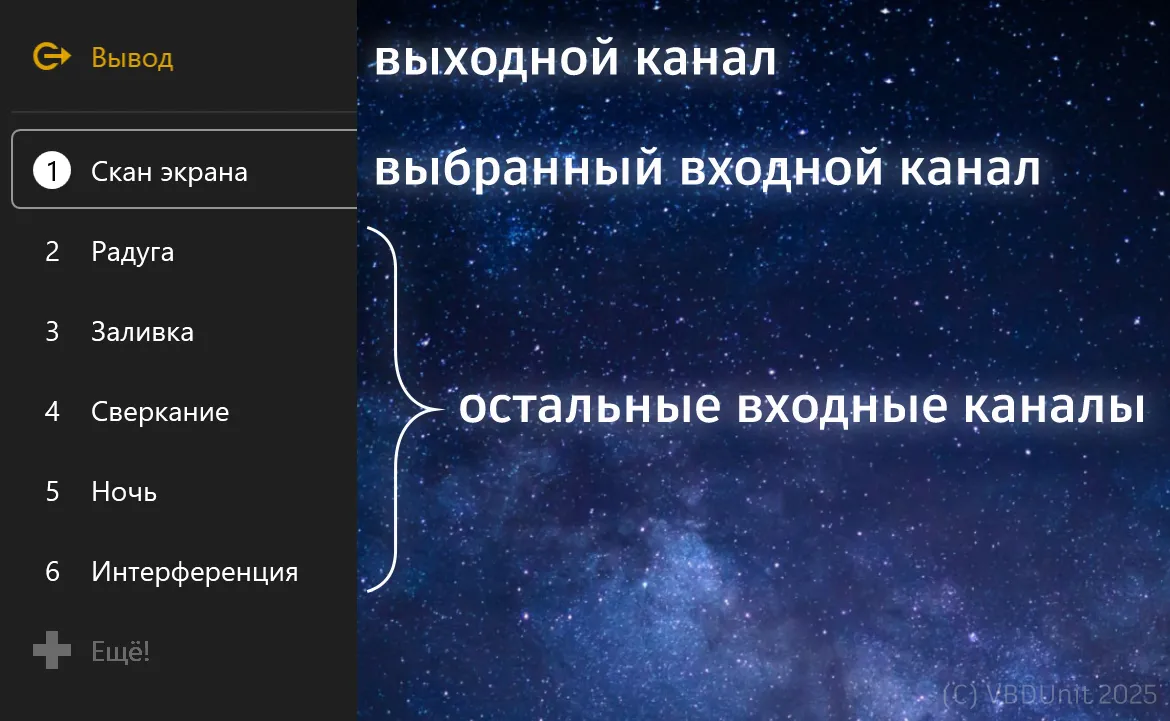

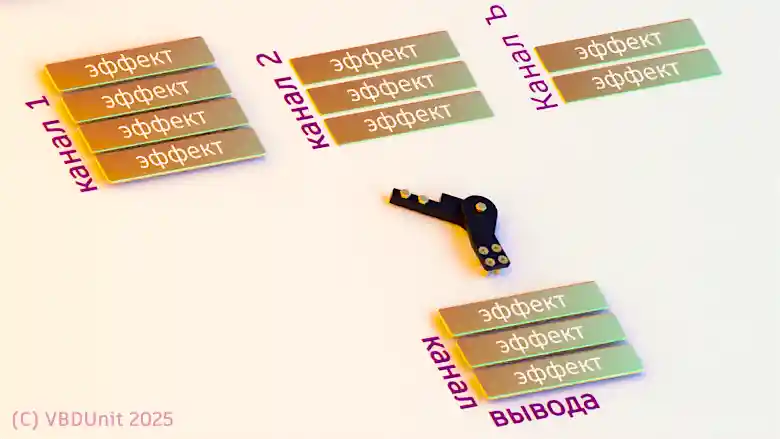

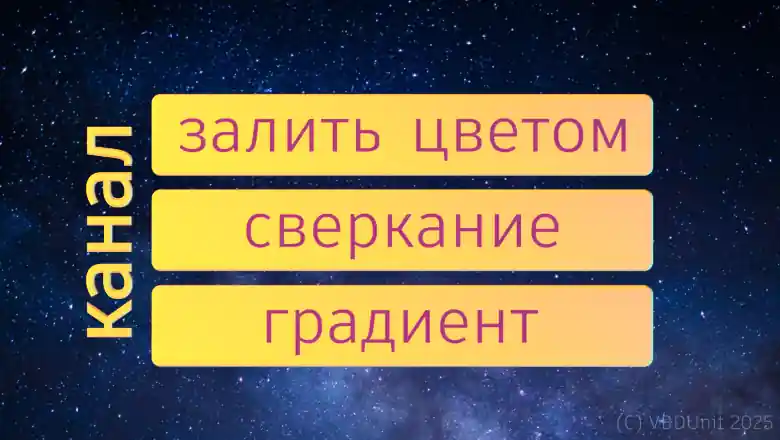

  • Channels -- sources of one-dimensional images
  • Effects -- data processors (swizzling, fill, glow)
  • Output channel -- final post-processing before sending to the controller

Optimization Approach

The core philosophy: "allocate less frequently and consume as much memory as you want." This requires:

  • Minimizing heap object creation
  • Reusing buffers
  • Avoiding garbage collector triggers

Experimental Primitives

mew -- lazy string concatenation on the stack (up to 48 fragments without allocations)

E.rr -- an error handling system without exceptions (logging and continuing execution)

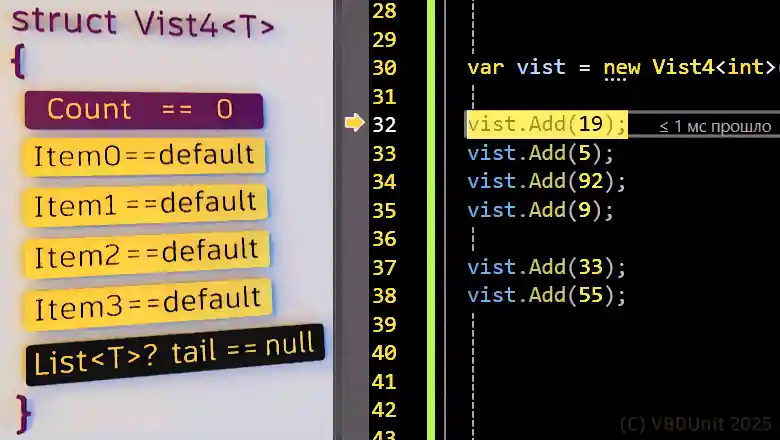

Vist4, Vist16, Vist64 -- lists that store the first elements on the stack and the rest on the heap

ConcurrentBagSlim -- an optimized concurrent container

BeautifulTimer -- a precise timer based on the Windows multimedia API

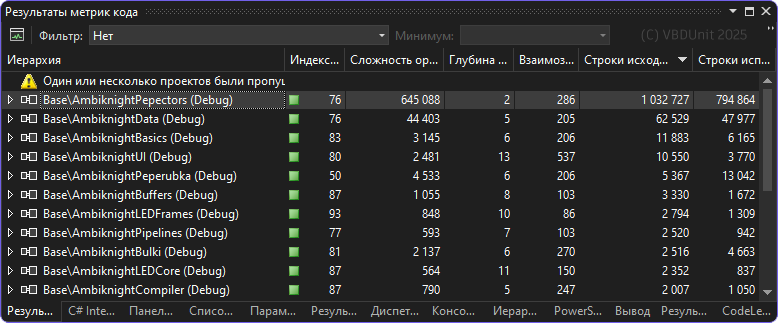

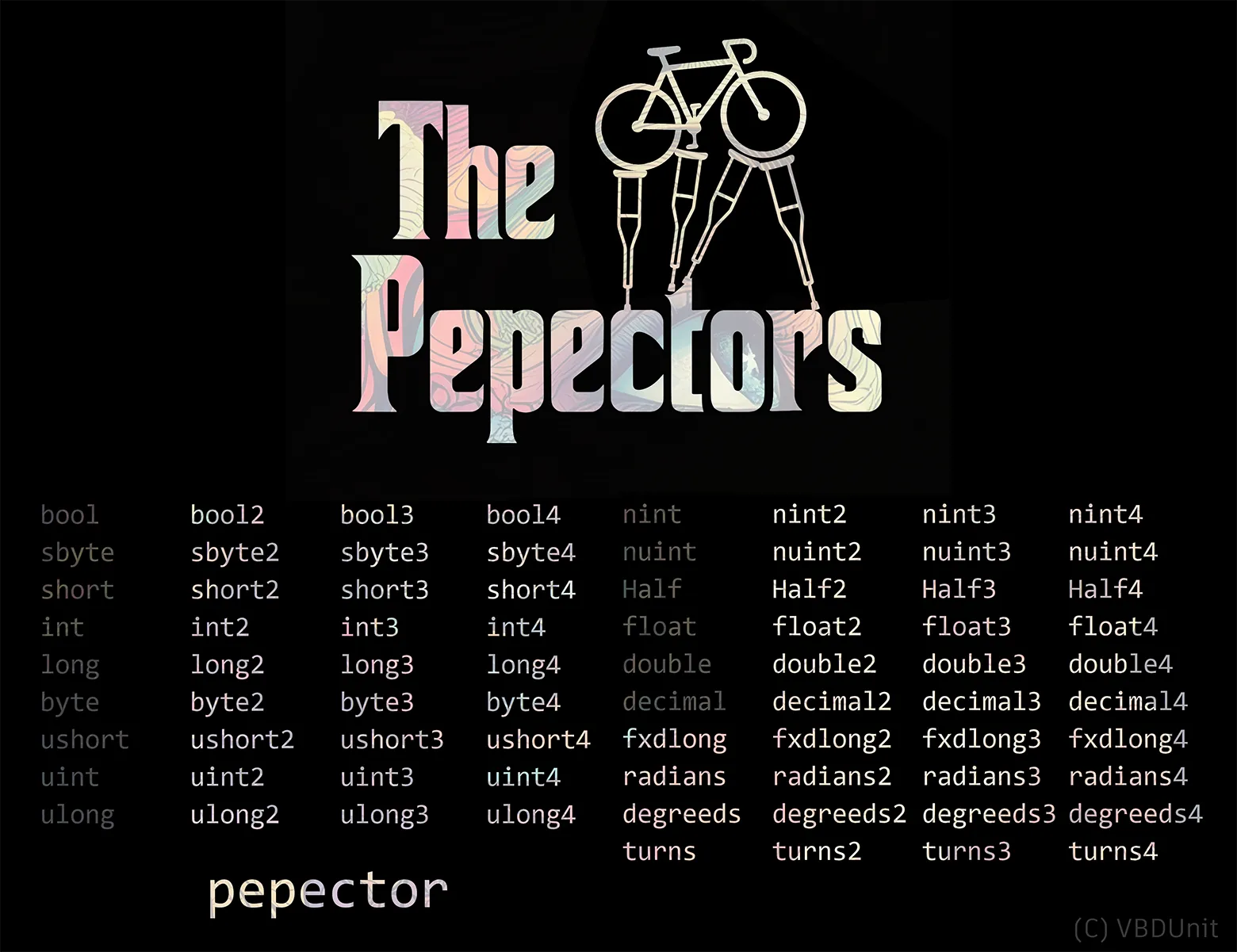

Pepectors (Vector Extensions)

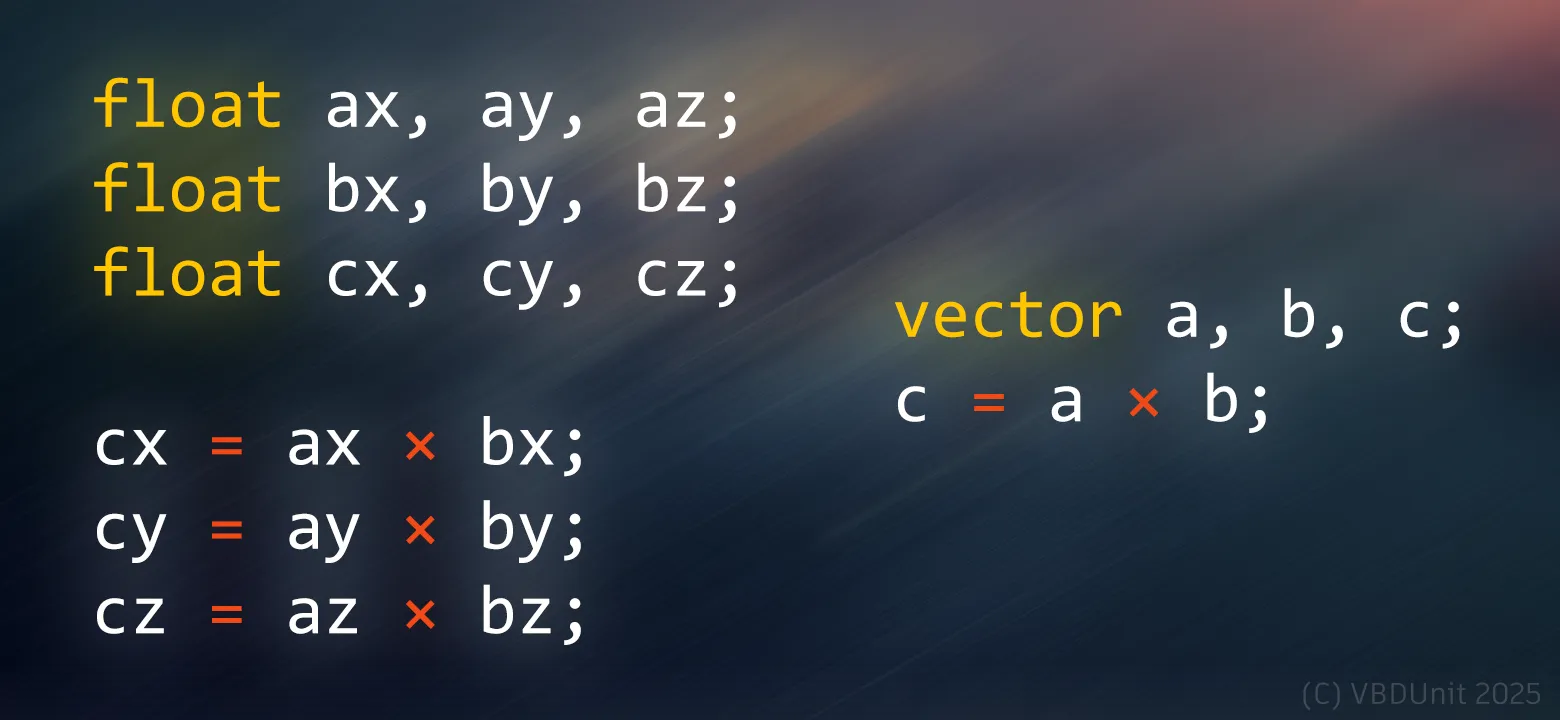

The most ambitious part of the project -- adding vector types to all C# scalars:

  • float2, float3, float4 and analogs for all numeric types
  • Angles: turns, radians, degrees (with implicit conversion)
  • Fixed point: fxdlong

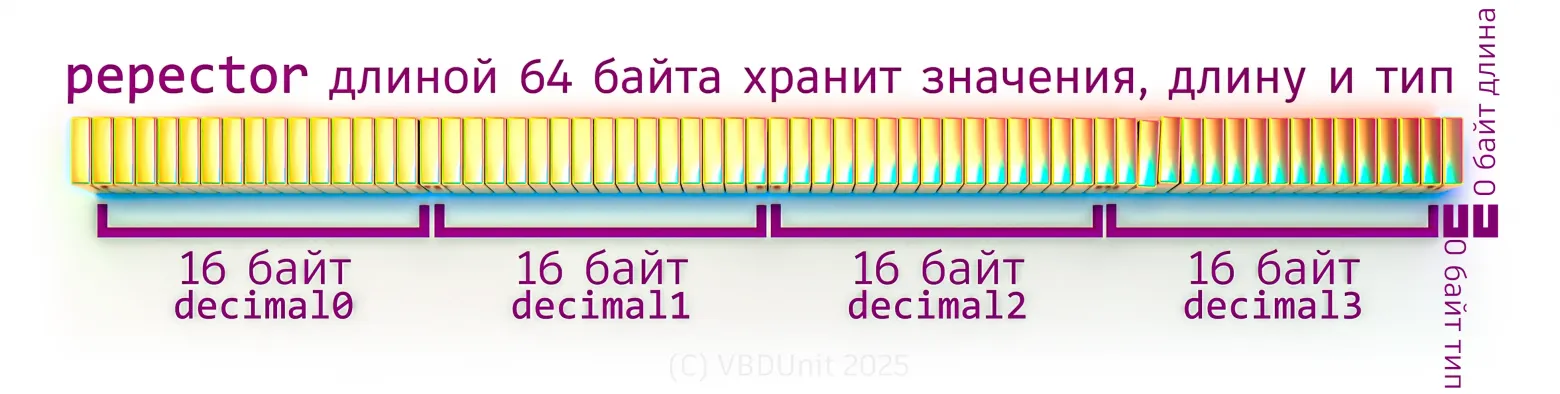

  • Universal pepector -- a dynamic vector of any size and type

Key capabilities:

  • HLSL-like syntax: float3 color = (1, 2, 3); color *= 2;
  • Swizzling: color.rgb = color.bgr;
  • Color space support (RGB to HSL and back)
  • Atomic operations for 32-64 bit types

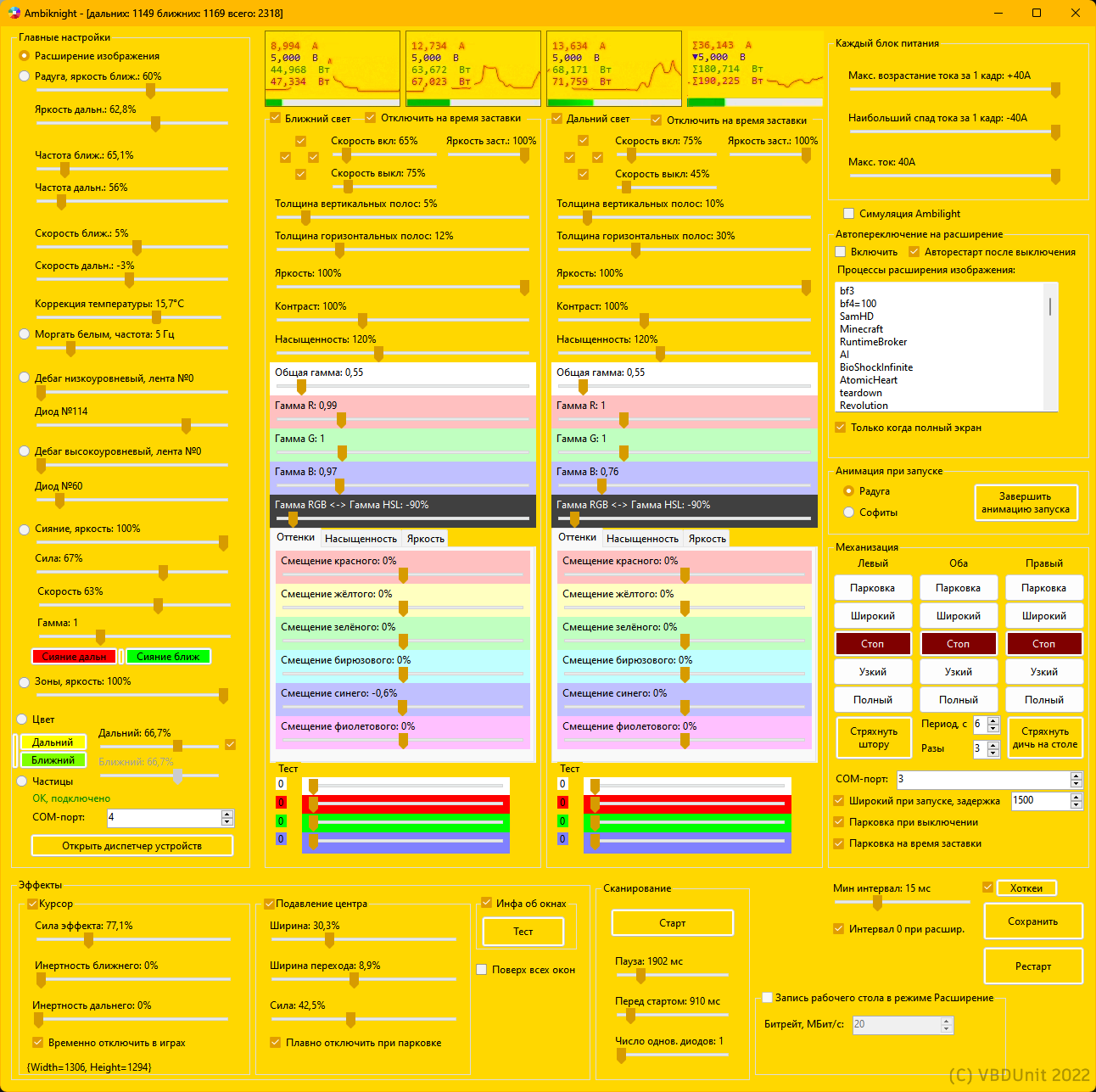

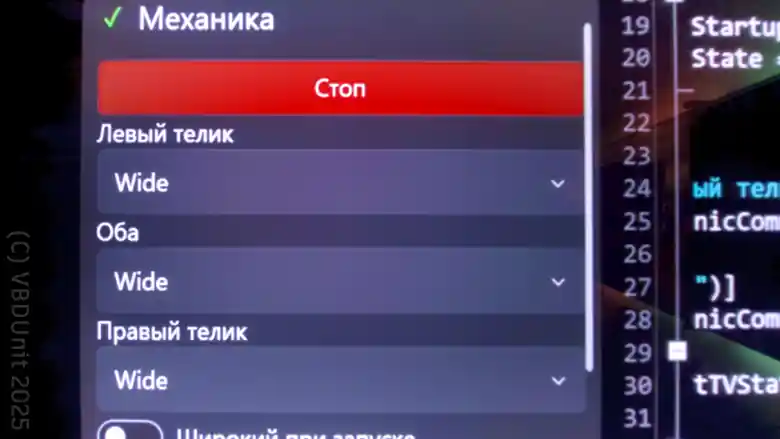

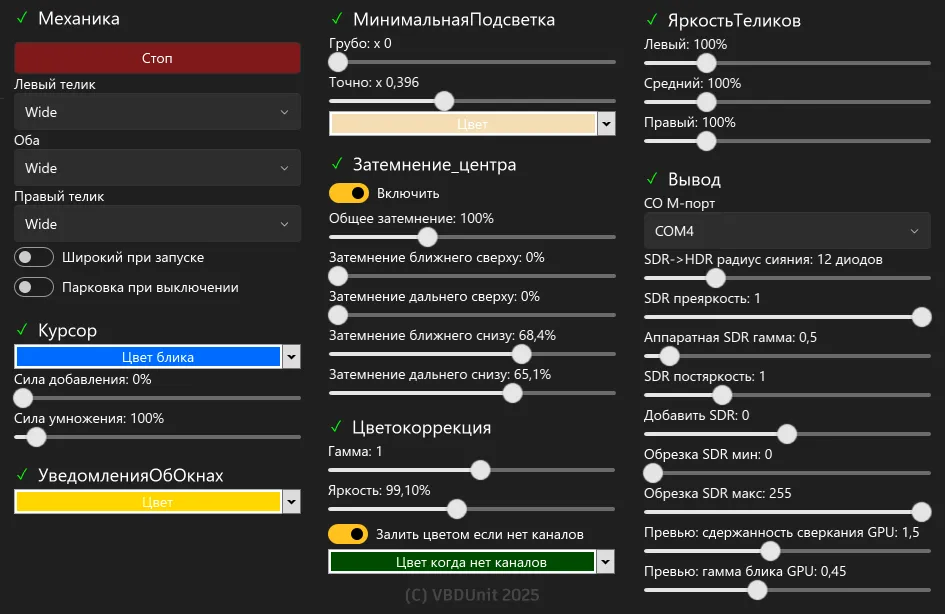

Interface Functionality

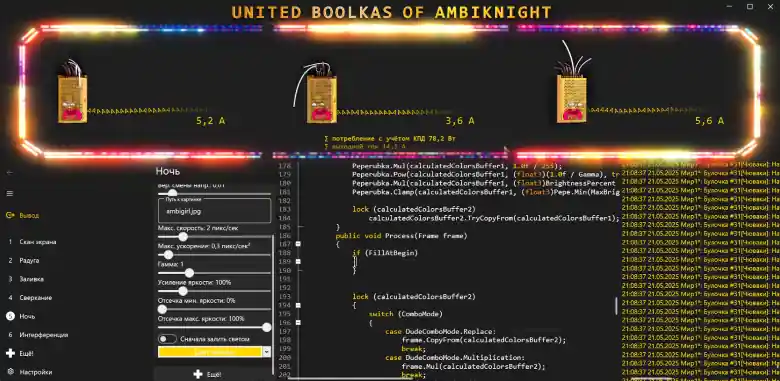

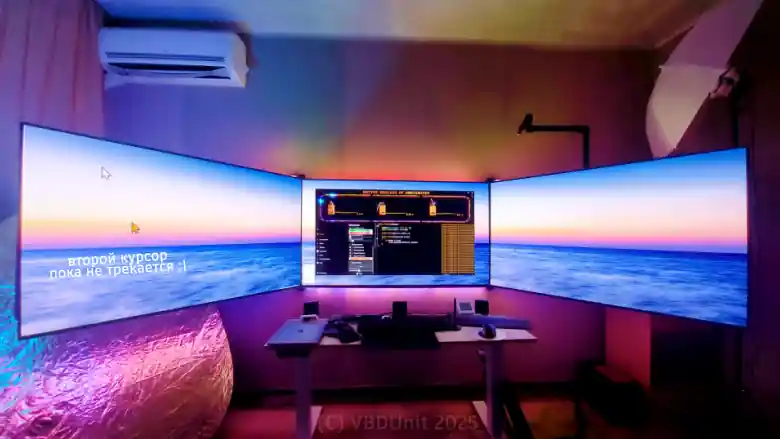

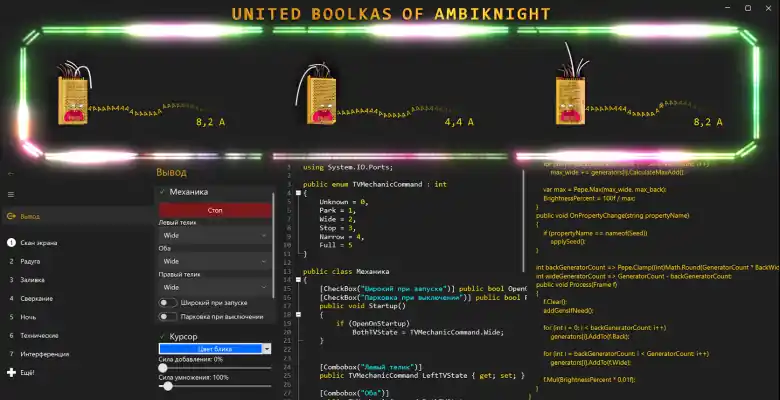

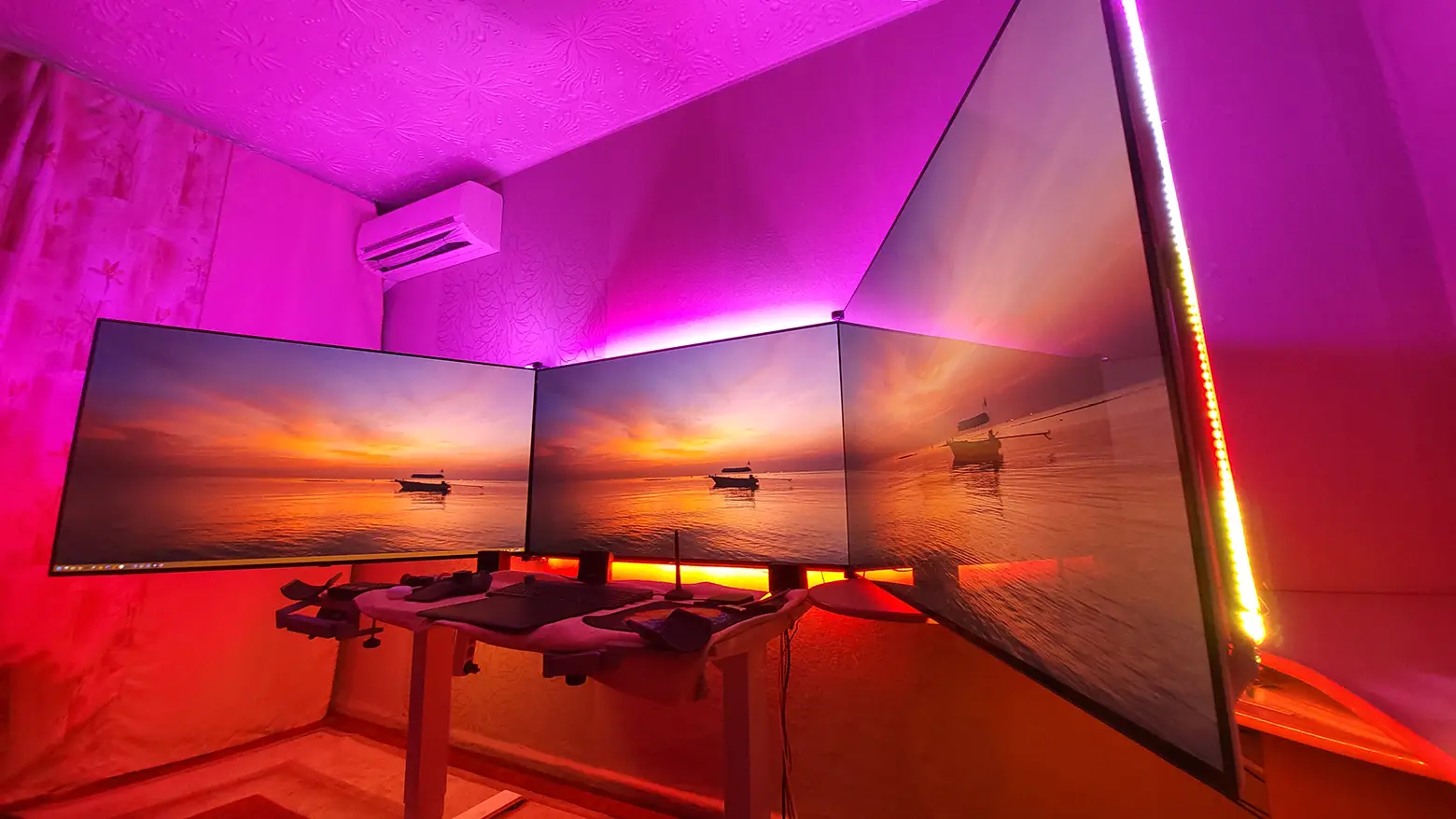

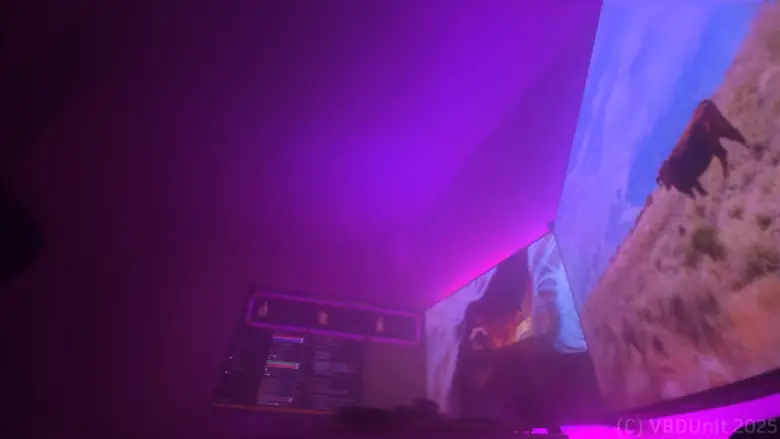

  • Real-time analysis and display of the video wall

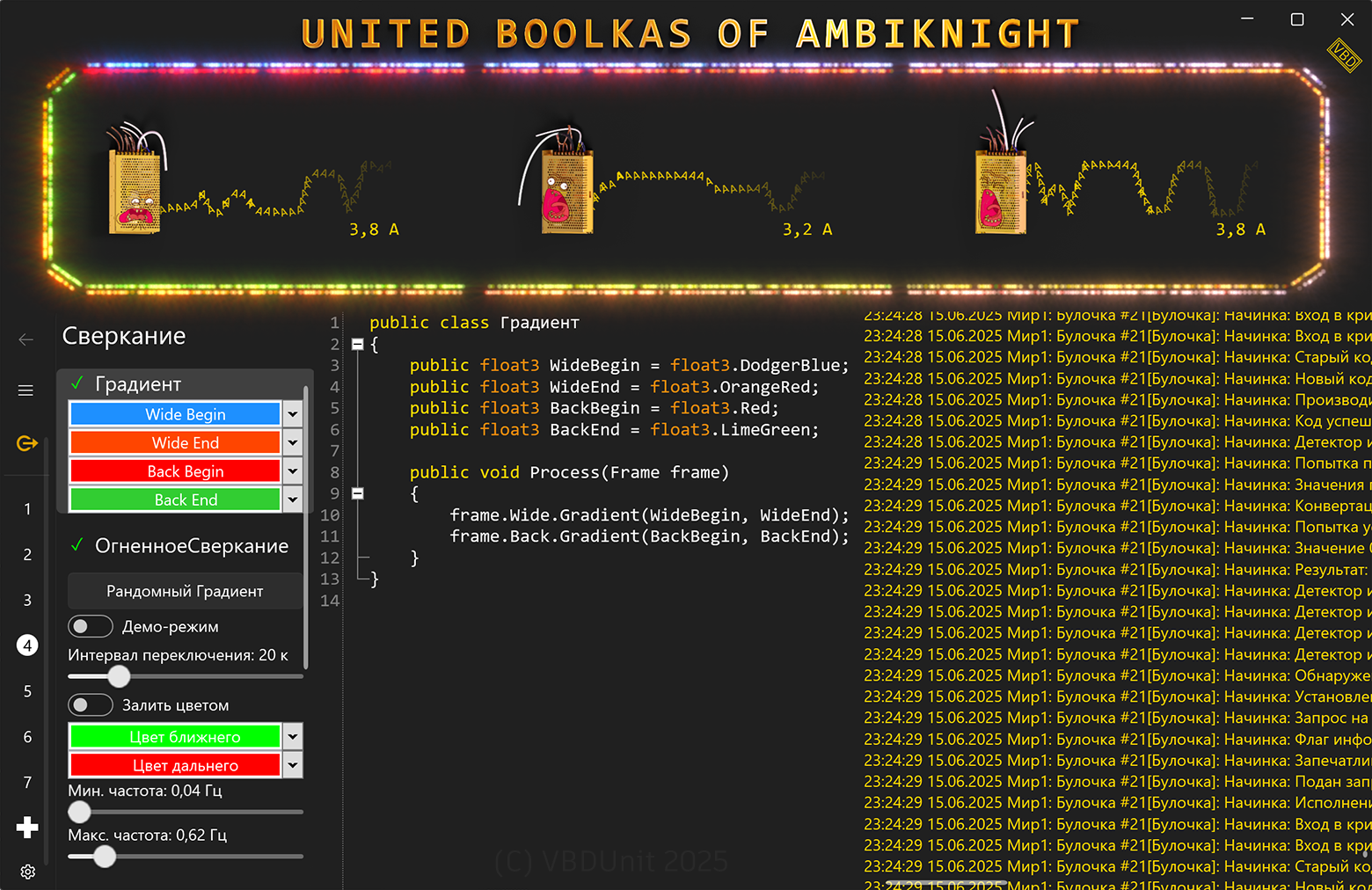

  • Visualization of 2,315 LEDs

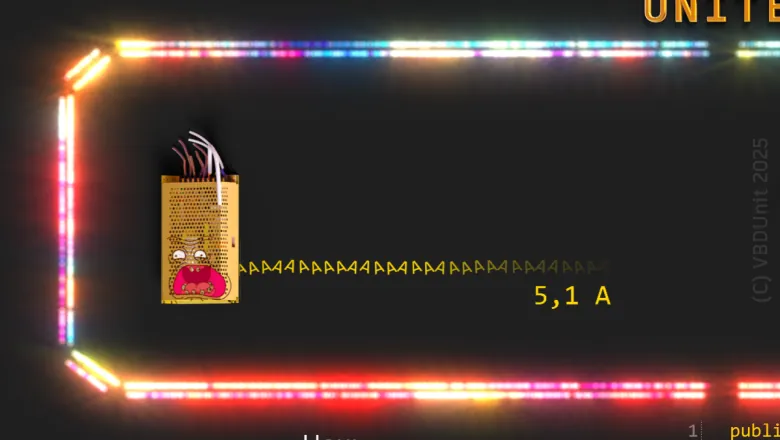

  • Power consumption graphs per power supply unit

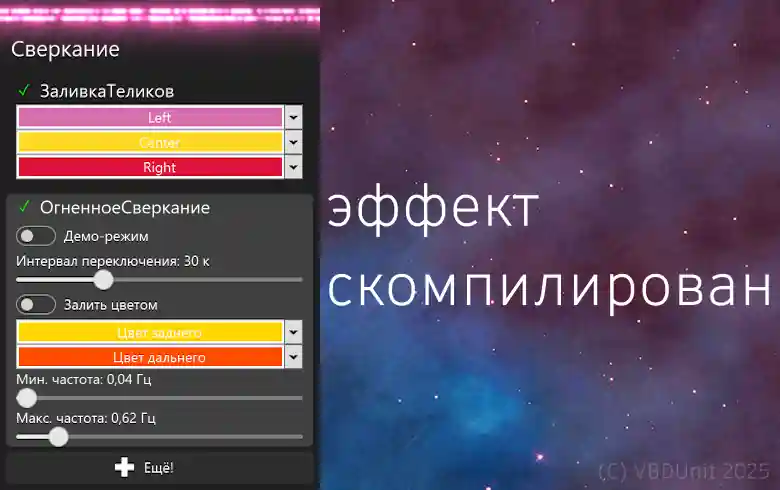

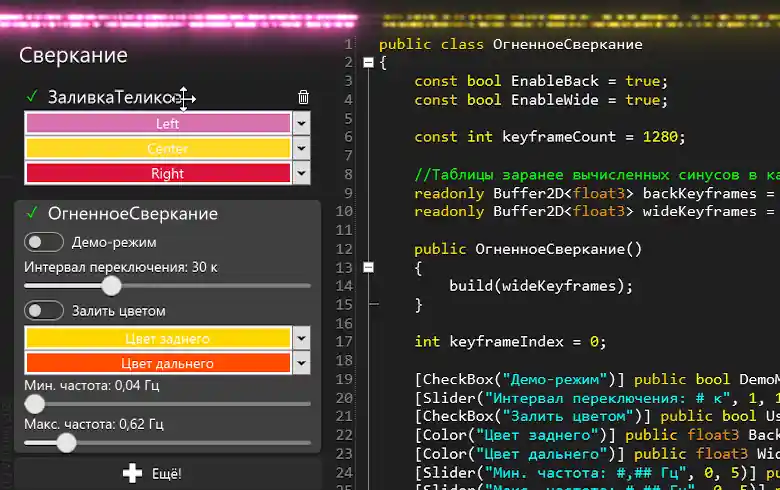

  • Built-in code editor with syntax highlighting and autocomplete
  • HDR support during screen analysis

Additional Effects

  • Cursor tracking via a separate bright highlight spot
  • New window detection with a flash at the approximate position

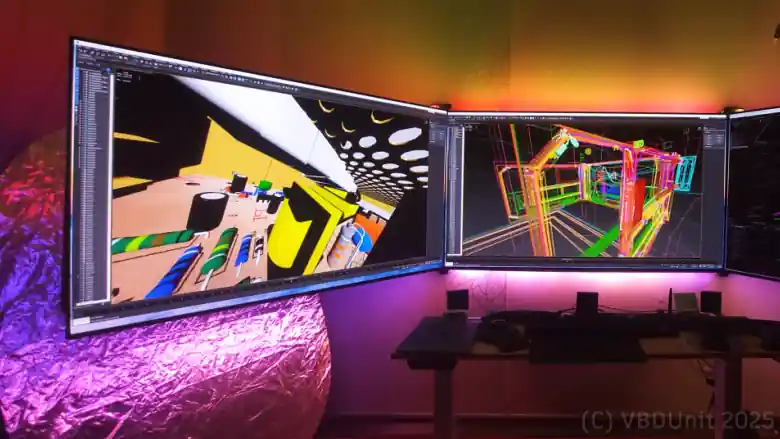

  • Automatic brightness adjustment depending on TV positions

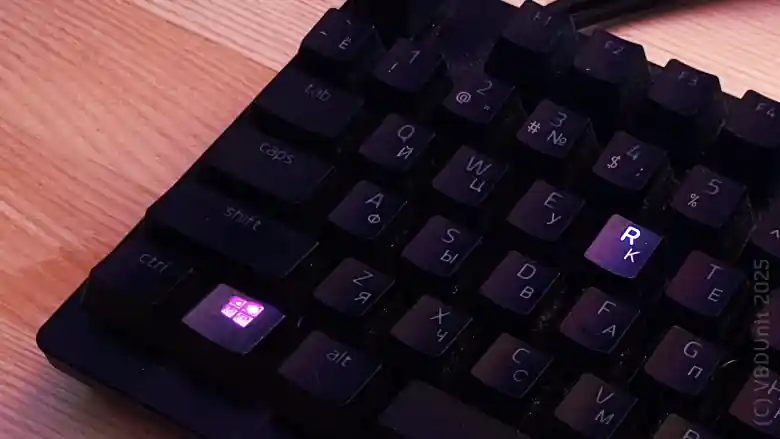

  • Keyboard layout indicator (Russian/English)

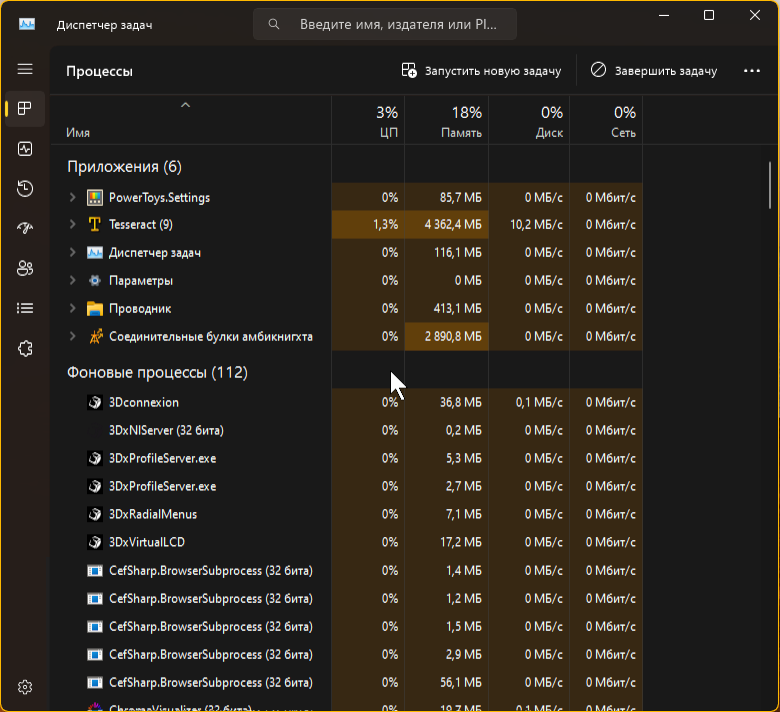

Performance

When analyzing a 12K screen:

  • GPU load: 0%
  • CPU load: 0%
  • Memory allocation frequency: 0 Hz

In minimized window mode, the software consumes less than 1% CPU and GPU.

Technical Stack

Although the software is written in C#, it is deeply integrated with:

  • HLSL (GPU shaders)
  • C++ (for performance-critical operations)
  • Windows API (multimedia timers, screen capture)

The project remains in alpha and serves as an experimental platform for testing both technical and conceptual ideas. With a million lines of code driving 2,315 LEDs, it achieves what the author set out to do: light up a billion colors with zero perceptible overhead.
